Rotary Clutch Core Drill

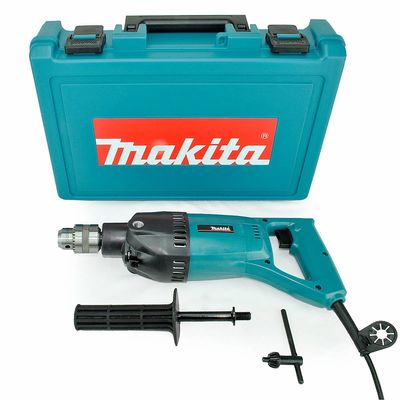

The Makita 8406 diamond core drill can be used to drill smooth holes in tile, ferro-concrete, marble and brick . Choose between rotary and rotary percussion action, with an impact rate of 22,500bpm. The maximum drilling capacity of this tool ranges from 30mm in wood, to 20mm in masonry and 13mm in steel. It is an excellent choice for plumbers, electricians, general contractors and even DIY Enthusiasts.

Max. in steel                                   13 mm

Max. in masonry                           20 mm

Max. in wood                                 30 mm

Max dry diamond core               152 mm

RPM                                                 1500 rpm

Blows per minute                        0-22500

Input wattage                               850 w

Vibration: Hammer Drilling       9.5 m/sec²

Vibration: Drilling                         2.5 m/sec²

Vibration K factor                         1.5 m/sec²

Noise sound pressure                 94 dB(A)

Noise sound power                     105 dB(A)

Noise K factor                               3 dB(A)

Net weight                                    3.7 kg

£POA

Tyrolit Electric Drill Motor DME20PW features an efficient motor with very high drilling performance. It is compact and has a ergonomic design and has a extremely robust 3-gear oil bath gearbox and metal body. Built in motor protection and visual levelling aid. Universal application: hand-held or rig-mounted/wet-drilling.

Voltage                                     110

Frequency                               50-60Hz

Drill Diameter Range           15 – 160mm

Power                                       2.0kW

Load Speed gear 1 (rpm)     540

Load Speed gear 2 (rpm)    1200

Load Speed gear 3 (rpm)    2520

Tool Attachment (ext.)         1 1/4″

Tool Attachment (int)           1/2″

Operation                               Hand-Held/Rig

Drill Rig Attachment           Clamp 60mm

Length                                     350mm

Weight                                     5.9 kg

£POA

The DD200 diamond drill and rig is an easy to operate coring system that is suited to a number of applications such as accurate core drilling through reinforced concrete, brick and other masonry materials. It offers a wide range of core drills from 50mm to 400mm and when used with the rig it greatly reduces the operators exposure to vibration levels and ensures extremely accurate drilling. This machine requires a 5kva transformer.

Power                                            2300w

Voltage                                          110v

Vibration                                       2.5m/s2

Noise Level                                   92dB(A)

Min - Max Drilling Range         25-400mm

Length                                          630mm

Width                                            150mm

Height                                           173mm

Weight                                          13.9kg

Weight: Complete System       34kg

£POA
